Yamaha YB 50 2002

2002 Yamaha YB 50 specifications, pictures, reviews and rating

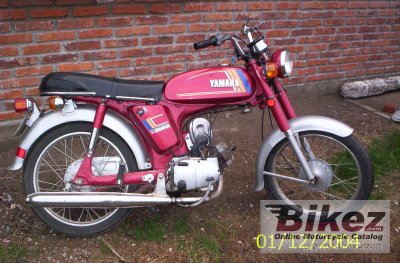

2002 Yamaha YB 50. Picture submitted by anonymous user.. Submit more pictures.

General moped information
Model:	Yamaha YB 50
Year:	2002
Category:	Classic
Rating:	3.3 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike.
Engine and transmission
Displacement:	49.0 ccm (2.99 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	4.0 HP (2.9 kW)) @ 7500 RPM
Torque:	4.0 Nm (0.4 kgf-m or 3.0 ft.lbs) @ 6000 RPM
Valves per cylinder:	2
Fuel control:	Single Overhead Cams (SOHC)
Cooling system:	Air
Chassis, suspension, brakes and wheels
Front brakes:	Expanding brake
Rear brakes:	Expanding brake
Physical measures and capacities
Dry weight:	85.0 kg (187.4 pounds)
Power/weight ratio:	0.0471 HP/kg
Seat height:	760 mm (29.9 inches) If adjustable, lowest setting.
Overall height:	1035 mm (40.7 inches)
Overall length:	1820 mm (71.7 inches)
Overall width:	725 mm (28.5 inches)
Ground clearance:	130 mm (5.1 inches)
Wheelbase:	1190 mm (46.9 inches)
Fuel capacity:	7.20 litres (1.90 gallons)
Other specifications
