Yamaha YB-1 Four 20022002 Yamaha YB-1 Four specifications, pictures, reviews and rating |

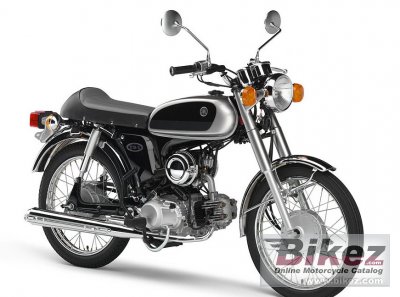

![]() 2002 Yamaha YB-1 Four. Picture submitted by anonymous user.. Submit more pictures.
|
General moped information | |
---|---|
Model: | Yamaha YB-1 Four |
Year: | 2002 |
Category: | Classic |
Rating: | 4.0 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
Engine and transmission | |
Displacement: | 49.0 ccm (2.99 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Power: | 4.1 HP (3.0 kW)) @ 7500 RPM |
Torque: | 4.0 Nm (0.4 kgf-m or 3.0 ft.lbs) @ 6000 RPM |
Compression: | 9.5:1 |
Bore x stroke: | 36.0 x 48.6 mm (1.4 x 1.9 inches) |
Valves per cylinder: | 2 |
Fuel system: | Carburettor |
Fuel control: | Single Overhead Cams (SOHC) |
Cooling system: | Air |
Gearbox: | 4-speed |
Transmission type, final drive: | Chain |
Chassis, suspension, brakes and wheels | |
Front brakes: | Expanding brake |
Rear brakes: | Expanding brake |
Physical measures and capacities | |
Dry weight: | 83.0 kg (183.0 pounds) |
Power/weight ratio: | 0.0494 HP/kg |
Seat height: | 745 mm (29.3 inches) If adjustable, lowest setting. |
Overall height: | 960 mm (37.8 inches) |
Overall length: | 1785 mm (70.3 inches) |
Overall width: | 655 mm (25.8 inches) |
Ground clearance: | 130 mm (5.1 inches) |
Wheelbase: | 1190 mm (46.9 inches) |
Fuel capacity: | 7.20 litres (1.90 gallons) |
Other specifications | |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
Parts finder |
Chaparral provides online schematics & OEM parts |
Ask questions | Join the 02 Yamaha YB-1 Four discussion group or the general Yamaha discussion group. |
Related bikes | List related bikes for comparison of specs. |
Sell or buy used mopeds?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2002 Yamaha YB-1 Four or advertise any other MC for sale. You can list all 2002 Yamaha YB-1 Four available and also sign up for e-mail notification when such mopeds are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the moped's engine performance, repair costs, etc. |
|
Rating sample for this Yamaha moped | |
Reliability for the 2002 Yamaha YB-1 Four:![]() ![]() Click here for complete rating. You can also compare bikes. |
![]() |
