General information |
|
Model
|

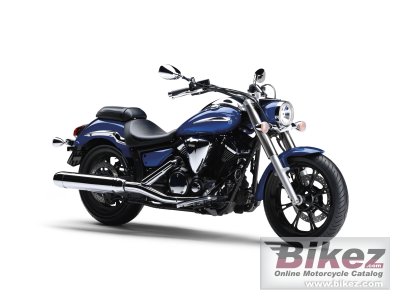

Yamaha XVS 950A Midnight Star |
|
Year of manufacture
|
2010 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
942.0 ccm (57.48 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
52.8 HP (38.6 kW)) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
85.0 x 83.0 mm (3.3 x 3.3 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multiple-disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel double cradle |
|
Trail
|
145 mm (5.7 inches) |
|
Front suspension
|
Telescopic forks, Ø 41 mm |
|
Front wheel travel
|
135 mm (5.3 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
130/70-M18 |
|
Rear tire
|
170/70-B16 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
278.0 kg (612.9 pounds) |
|
Seat height
|
675 mm (26.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1080 mm (42.5 inches) |
|
Overall length
|
2435 mm (95.9 inches) |
|
Overall width
|
1000 mm (39.4 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1685 mm (66.3 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Oil capacity
|
4.00 litres (4.23 US quarts) |
|
Other specifications |
|
Color options
|
Black, blue |
|
Starter
|
Electric |
