Yamaha XVS 650 DragStar 20042004 Yamaha XVS 650 DragStar specifications, pictures, reviews and rating |

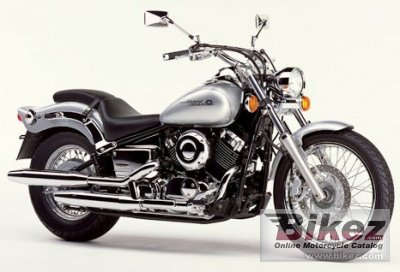

 2004 Yamaha XVS 650 DragStar. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Equipped with a long-and-low chassis and ultra-smooth suspension, the XVS650 Drag Star looks every bit as cool as our bigger Star models. Its ultra-low seat height, raised handlebars and forward-mounted footrests give a really comfortable riding position. |
| General information | |
|---|---|
| Motorcycle name | Yamaha XVS 650 DragStar |
| Year | 2004 |
| Category | Custom / cruiser |
| Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 649.0 ccm (39.60 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 39.4 HP (28.8 kW)) @ 6500 RPM |
| Torque | 50.9 Nm (5.2 kgf-m or 37.5 ft.lbs) @ 3000 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 63.0 mm (3.2 x 2.5 inches) |
| Valves per cylinder | 1 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm Monocross |
| Rear wheel travel | 86 mm (3.4 inches) |
| Front tire | 100/90-ZR19 |
| Rear tire | 170/80-ZR15 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Dry weight | 220.0 kg (485.0 pounds) |
| Power/weight ratio | 0.1792 HP/kg |
| Seat height | 695 mm (27.4 inches) If adjustable, lowest setting. |
| Overall height | 1070 mm (42.1 inches) |
| Overall length | 2340 mm (92.1 inches) |
| Overall width | 880 mm (34.6 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1610 mm (63.4 inches) |
| Other specifications | |
| Color options | Metallic silver |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Yamaha XVS 650 DragStar discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2004 Yamaha XVS 650 DragStar or advertise any other MC for sale. You can list all 2004 Yamaha XVS 650 DragStar available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
| Rating sample for this Yamaha bike | |
Reliability for the 2004 Yamaha XVS 650 DragStar:  (91.4 out of 100)Click here for complete rating. You can also compare bikes. |
|
