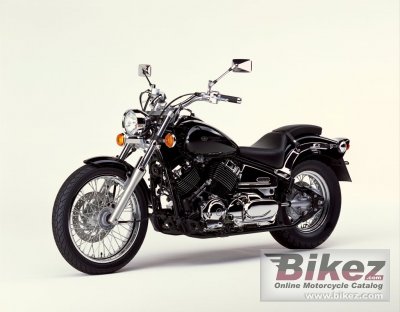

Yamaha XVS 650 Drag Star 20022002 Yamaha XVS 650 Drag Star specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Yamaha XVS 650 Drag Star |
| Year model | 2002 |
| Type | Custom / cruiser |
| Rating | 4.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 649.0 ccm (39.60 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 40.0 HP (29.2 kW)) @ 6500 RPM |
| Torque | 50.9 Nm (5.2 kgf-m or 37.5 ft.lbs) @ 3000 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 63.0 mm (3.2 x 2.5 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear wheel travel | 86 mm (3.4 inches) |
| Front tire | 100/90-ZR19 M/C 57S |
| Rear tire | 170/80-15 M/C 77S |
| Front brakes | Dual disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Dry weight | 215.0 kg (474.0 pounds) |
| Power/weight ratio | 0.1860 HP/kg |
| Seat height | 695 mm (27.4 inches) If adjustable, lowest setting. |
| Overall height | 1070 mm (42.1 inches) |
| Overall length | 2340 mm (92.1 inches) |
| Overall width | 880 mm (34.6 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1610 mm (63.4 inches) |
| Other specifications | |
