General information |
|
Model
|

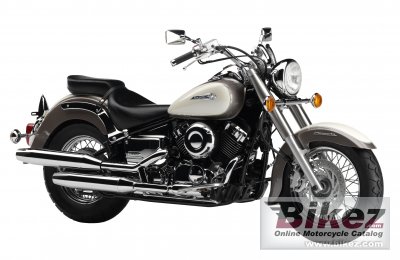

Yamaha XVS 650 A DragStar Classic |
|
Year
|
2007 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
649.0 ccm (39.60 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
39.4 HP (28.8 kW)) @ 6500 RPM |
|
Torque
|
50.1 Nm (5.1 kgf-m or 37.0 ft.lbs) @ 5100 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
81.0 x 63.0 mm (3.2 x 2.5 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet, multiple disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
- |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
Swingarm (Monocross) |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
160/90-(16 |
|
Rear tire
|
170/80-M15 |
|
Front brakes
|
Single disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
229.0 kg (504.9 pounds) |
|
Power/weight ratio
|
0.1721 HP/kg |
|
Seat height
|
710 mm (28.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1105 mm (43.5 inches) |
|
Overall length
|
2450 mm (96.5 inches) |
|
Overall width
|
930 mm (36.6 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1625 mm (64.0 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
For the European market. |
