Yamaha XVS 650 A DragStar Classic 20062006 Yamaha XVS 650 A DragStar Classic specifications, pictures, reviews and rating |

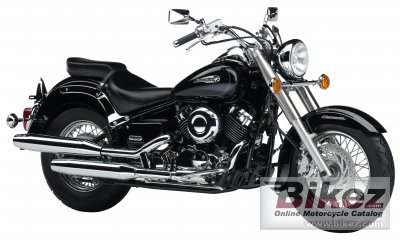

 2006 Yamaha XVS 650 A DragStar Classic. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| Chase new sights and new sounds, all played out to the rhythmic beat of your XVS650A DragStar Classic. The XVS650 is our compact cruiser – your passport to a new world of riding freedom. |
| General information | |
|---|---|
| Model name | Yamaha XVS 650 A DragStar Classic |
| Model year | 2006 |
| Category | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 649.0 ccm (39.60 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 39.4 HP (28.8 kW)) @ 6500 RPM |
| Torque | 50.1 Nm (5.1 kgf-m or 37.0 ft.lbs) @ 5100 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 63.0 mm (3.2 x 2.5 inches) |
| Fuel system | Carburettor. Mikuni BDS28/2 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiple disc |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm (Monocross) |
| Rear wheel travel | 105 mm (4.1 inches) |
| Front tire | 160/90-(16 |
| Rear tire | 170/80-M15 |
| Front brakes | Single disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Dry weight | 229.0 kg (504.9 pounds) |
| Power/weight ratio | 0.1721 HP/kg |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2450 mm (96.5 inches) |
| Overall width | 930 mm (36.6 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1625 mm (64.0 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Yamaha XVS 650 A DragStar Classic discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2006 Yamaha XVS 650 A DragStar Classic discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Touring capabilities for the 2006 Yamaha XVS 650 A DragStar Classic:  (83.1 out of 100)Click here for complete rating. You can also compare bikes. |
|
