Yamaha XVS 650 A DragStar Classic 20042004 Yamaha XVS 650 A DragStar Classic specifications, pictures, reviews and rating |

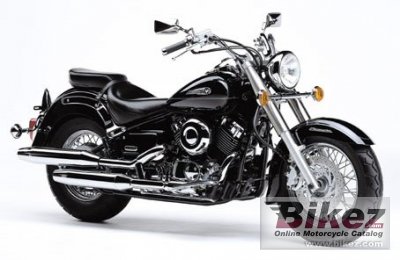

 2004 Yamaha XVS 650 A DragStar Classic. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| The XVS650A Drag Star Classic’s extra-long wheelbase chassis, highly polished engine cases and traditional spoked wheels emphasise this middleweight V-twin cruiser’s head-turning good looks. Changes for 2004 include fatter exhausts equipped with catalytic converters that enable this popular machine to comply with EU 2 regulations. The profile of the stepped dual seat has been changed for improved comfort and controllability, and a hazard light function and immobiliser are now fitted. |
| General information | |
|---|---|
| Model | Yamaha XVS 650 A DragStar Classic |
| Year of manufacture | 2004 |
| Type | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 649.0 ccm (39.60 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 39.4 HP (28.8 kW)) @ 6500 RPM |
| Torque | 50.1 Nm (5.1 kgf-m or 37.0 ft.lbs) @ 3000 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 81.0 x 63.0 mm (3.2 x 2.5 inches) |
| Valves per cylinder | 1 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm Monocross |
| Rear wheel travel | 98 mm (3.9 inches) |
| Front tire | 130/90-16 |
| Rear tire | 170/80-15 |
| Front brakes | Single disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Dry weight | 229.0 kg (504.9 pounds) |
| Power/weight ratio | 0.1721 HP/kg |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2450 mm (96.5 inches) |
| Overall width | 930 mm (36.6 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1610 mm (63.4 inches) |
| Other specifications | |
| Color options | Yamaha black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Yamaha XVS 650 A DragStar Classic discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2004 Yamaha XVS 650 A DragStar Classic for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Yamaha bike | |
Value for money for the 2004 Yamaha XVS 650 A DragStar Classic:  (87.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
