General information |
|
Model name
|

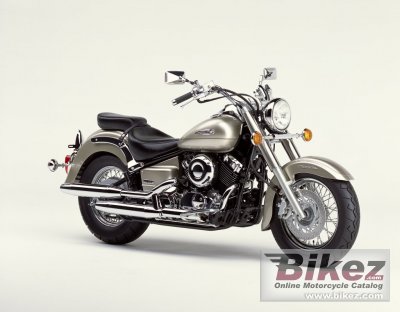

Yamaha XVS 650 A Drag Star Classic |
|
Model year
|
2002 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
649.0 ccm (39.60 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
40.0 HP (29.2 kW)) @ 6500 RPM |
|
Torque
|
50.9 Nm (5.2 kgf-m or 37.5 ft.lbs) @ 3000 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
81.0 x 63.0 mm (3.2 x 2.5 inches) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Chassis, suspension, brakes and wheels |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear wheel travel
|
86 mm (3.4 inches) |
|
Front tire
|
100/90-ZR19 M/C 57S |
|
Rear tire
|
170/80-15 M/C 77S |
|
Front brakes
|
Single disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
229.0 kg (504.9 pounds) |
|
Power/weight ratio
|
0.1747 HP/kg |
|
Seat height
|
695 mm (27.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
2340 mm (92.1 inches) |
|
Overall width
|
880 mm (34.6 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1610 mm (63.4 inches) |
|
Other specifications |
