Yamaha XVS 400 DragStar 20012001 Yamaha XVS 400 DragStar specifications, pictures, reviews and rating |

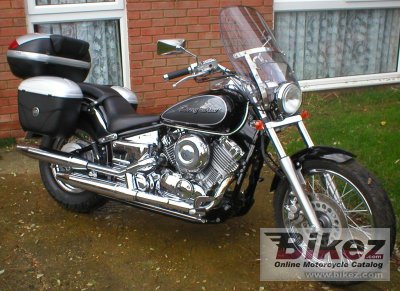

 2001 Yamaha XVS 400 DragStar. Picture credits - Alan MacDonald Smith. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| The Drag Star XVS 400 in available in the Standard and Classic versions, it´s Identical to the XVS 650 but with a smaller engine capacity. Primarily designed for the Japanese home market the 400 has become a popular import into the United Kingdom and USA due to its excellent reputation and low running costs. |
| General information | |
|---|---|
| Model name | Yamaha XVS 400 DragStar |
| Year | 2001 |
| Category | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 400.0 ccm (24.41 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 32.2 HP (23.5 kW)) @ 7500 RPM |
| Torque | 32.0 Nm (3.3 kgf-m or 23.6 ft.lbs) @ 6000 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 68.0 x 55.0 mm (2.7 x 2.2 inches) |
| Fuel system | Carburettor. BDS28×2 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | T.C.I. Formula |
| Cooling system | Air |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle |
| Front suspension | Telescopic forks |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm Monocross |
| Rear wheel travel | 113 mm (4.4 inches) |
| Front tire | 110/90-18 |
| Rear tire | 170/80-15 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Dry weight | 225.0 kg (496.0 pounds) |
| Power/weight ratio | 0.1430 HP/kg |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height | 1095 mm (43.1 inches) |
| Overall length | 2340 mm (92.1 inches) |
| Overall width | 895 mm (35.2 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1610 mm (63.4 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Metallic silver, Metallic Black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 01 Yamaha XVS 400 DragStar discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2001 Yamaha XVS 400 DragStar discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Touring capabilities for the 2001 Yamaha XVS 400 DragStar:  (85.5 out of 100)Click here for complete rating. You can also compare bikes. |
|
