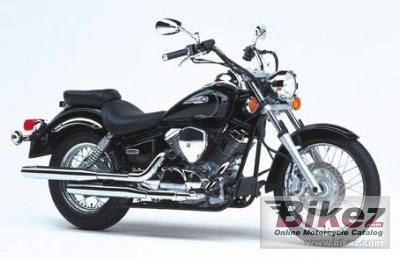

2004 Yamaha XVS 250 DragStar

Yamaha XVS 250 DragStar 2004


2004 Yamaha XVS 250 DragStar specifications, pictures, reviews and rating

Yamaha's profilation of this bike
If you like to keep a low profile, then you’d better walk away now! Because the XVS250 Drag Star is built to get a whole lot of attention wherever you go!

General information
Model name Yamaha XVS 250 DragStar
Year model 2004
Type Custom / cruiser
Rating 3.5  See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike.
Engine and transmission
Engine size 249.0 ccm (15.19 cubic inches)
Type of engine V2, four-stroke
Effect 20.8 HP (15.2 kW)) @ 10000 RPM
Torque 20.7 Nm (2.1 kgf-m or 15.3 ft.lbs) @ 2100 RPM
Compression 10.0:1
Bore x stroke 49.0 x 66.0 mm (1.9 x 2.6 inches)
Valves per cylinder 1
Fuel control Single Overhead Cams (SOHC)
Cooling system Air
Chassis, suspension, brakes and wheels
Front suspension Telescopic fork
Front wheel travel 140 mm (5.5 inches)
Rear suspension Swingarm
Rear wheel travel 100 mm (3.9 inches)
Front tire 80/100-18
Rear tire 130/90-15
Front brakes Single disc
Diameter 282 mm (11.1 inches)
Rear brakes Expanding brake (drum brake)
Diameter 130 mm (5.1 inches)
Physical measures and capacities
Dry weight 147.0 kg (324.1 pounds)
Power/weight ratio 0.1414 HP/kg
Seat height 670 mm (26.4 inches) If adjustable, lowest setting.
Overall height 1075 mm (42.3 inches)
Overall length 2320 mm (91.3 inches)
Overall width 910 mm (35.8 inches)
Ground clearance 150 mm (5.9 inches)
Wheelbase 1530 mm (60.2 inches)
Other specifications
Color options Midnight black
