Yamaha XVS 250 Drag Star 20022002 Yamaha XVS 250 Drag Star specifications, pictures, reviews and rating |

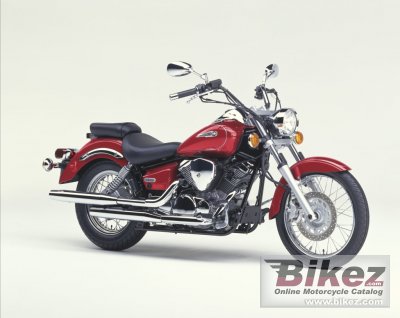

 2002 Yamaha XVS 250 Drag Star. Picture by Yamaha. Published with permission.. Submit more pictures.
|
| General information | |
|---|---|
| Model name | Yamaha XVS 250 Drag Star |
| Year of manufacture | 2002 |
| Type | Custom / cruiser |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 249.0 ccm (15.19 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 21.1 HP (15.4 kW)) @ 8000 RPM |
| Torque | 20.7 Nm (2.1 kgf-m or 15.3 ft.lbs) @ 6000 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 49.0 x 66.0 mm (1.9 x 2.6 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi plate wet |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Cartridge fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Dual shocks |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | 80/100-18 47P |
| Rear tire | 130/90-15 M/C 66P |
| Front brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Rear brakes | Expanding brake |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Dry weight | 147.0 kg (324.1 pounds) |
| Power/weight ratio | 0.1435 HP/kg |
| Seat height | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Overall height | 1075 mm (42.3 inches) |
| Overall length | 2320 mm (91.3 inches) |
| Overall width | 910 mm (35.8 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1530 mm (60.2 inches) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Yamaha XVS 250 Drag Star discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2002 Yamaha XVS 250 Drag Star discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Engine performance for the 2002 Yamaha XVS 250 Drag Star:  (55.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
