Yamaha XVS 1300A Midnight Star 20102010 Yamaha XVS 1300A Midnight Star specifications, pictures, reviews and rating |

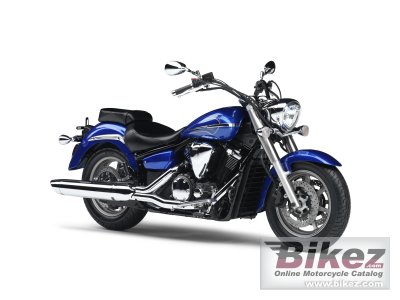

 2010 Yamaha XVS 1300A Midnight Star. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| Its engine features forged pistons, 4-valve heads and shortstroke con-rods, so every time you hit the throttle you feel a knockout, low-down punch that turns into serious top-end power. |
| General information | |
|---|---|
| Model name | Yamaha XVS 1300A Midnight Star |
| Model year | 2010 |
| Category | Custom / cruiser |
| Rating | 3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1304.0 ccm (79.57 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 71.7 HP (52.4 kW)) @ 5500 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 100.0 x 83.0 mm (3.9 x 3.3 inches) |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle |
| Trail | 145 mm (5.7 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 135 mm (5.3 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 110 mm (4.3 inches) |
| Front tire | 130/90-M16 |
| Rear tire | 170/70-B16 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 298 mm (11.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 303.0 kg (668.0 pounds) |
| Seat height | 715 mm (28.1 inches) If adjustable, lowest setting. |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 2490 mm (98.0 inches) |
| Overall width | 980 mm (38.6 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1690 mm (66.5 inches) |
| Fuel capacity | 18.50 litres (4.89 US gallons) |
| Oil capacity | 3.70 litres (3.91 US quarts) |
| Other specifications | |
| Color options | Black, blue |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Yamaha XVS 1300A Midnight Star discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2010 Yamaha XVS 1300A Midnight Star discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Touring capabilities for the 2010 Yamaha XVS 1300A Midnight Star:  (74.5 out of 100)Click here for complete rating. You can also compare bikes. |
|
