Yamaha XVS 125 DragStar 20042004 Yamaha XVS 125 DragStar specifications, pictures, reviews and rating |

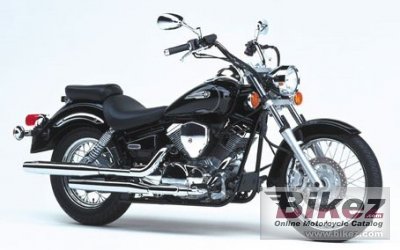

 2004 Yamaha XVS 125 DragStar. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Traditional air-cooled 4-stroke V-twin engines give thes XVS125 Drag Star a real big-bike look, and deliver plenty of responsive power for relaxed riding. |
| General information | |
|---|---|
| Model | Yamaha XVS 125 DragStar |
| Model year | 2004 |
| Category | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 12.9 HP (9.4 kW)) @ 10000 RPM |
| Torque | 9.4 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 8000 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 41.0 x 47.0 mm (1.6 x 1.9 inches) |
| Valves per cylinder | 2 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm Monocross |
| Rear wheel travel | 70 mm (2.8 inches) |
| Front tire | 80/90-M18 |
| Rear tire | 130/90-M15 |
| Front brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Dry weight | 144.0 kg (317.5 pounds) |
| Power/weight ratio | 0.0894 HP/kg |
| Seat height | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Overall height | 1075 mm (42.3 inches) |
| Overall length | 2320 mm (91.3 inches) |
| Overall width | 910 mm (35.8 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1530 mm (60.2 inches) |
| Other specifications | |
| Color options | Midnight black |
| Update specs | Report missing specs or required updates. |
