Yamaha XVS 125 Drag Star 2002

2002 Yamaha XVS 125 Drag Star specifications, pictures, reviews and rating

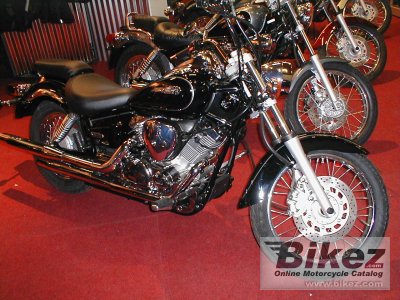

Picture credits - Harald Holm. Click to submit more pictures.

2002 Yamaha XVS 125 Drag Star

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Yamaha XVS 125 Drag Star
Year:	2002
Category:	Custom / cruiser
Rating:	70.1 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	124.00 ccm (7.57 cubic inches)
Engine type:	V2, four-stroke
Power:	13.00 HP (9.5 kW)) @ 10000 RPM
Torque:	9.40 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 8000 RPM
Compression:	11.0:1
Bore x stroke:	41.0 x 47.0 mm (1.6 x 1.9 inches)
Valves per cylinder:	2
Fuel control:	Single Overhead Cams (SOHC)
Cooling system:	Air
Chassis, suspension, brakes and wheels
Front wheel travel:	140 mm (5.5 inches)
Rear wheel travel:	100 mm (3.9 inches)
Front tyre:	80/100-47P
Rear tyre:	130/90-15 M/C 66P
Front brakes:	Single disc
Front brakes diameter:	282 mm (11.1 inches)
Rear brakes:	Expanding brake
Rear brakes diameter:	130 mm (5.1 inches)
Physical measures and capacities
Dry weight:	144.0 kg (317.5 pounds)
Power/weight ratio:	0.0903 HP/kg
Seat height:	670 mm (26.4 inches) If adjustable, lowest setting.
Overall height:	1,075 mm (42.3 inches)
Overall length:	2,320 mm (91.3 inches)
Overall width:	910 mm (35.8 inches)
Ground clearance:	150 mm (5.9 inches)
Wheelbase:	1,530 mm (60.2 inches)
Other specifications
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 02 Yamaha XVS 125 Drag Star discussion group or the general Yamaha discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.

General information

Model:

Yamaha XVS 125 Drag Star

Year:

2002

Category:

Custom / cruiser

Rating:

70.1 out of 100. Show full rating and compare with other bikes

Engine and transmission

Displacement:

124.00 ccm (7.57 cubic inches)

Engine type:

V2, four-stroke

Power:

13.00 HP (9.5 kW)) @ 10000 RPM

Torque:

9.40 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 8000 RPM

Compression:

11.0:1

Bore x stroke:

41.0 x 47.0 mm (1.6 x 1.9 inches)

Valves per cylinder:

Fuel control:

Single Overhead Cams (SOHC)

Cooling system:

Air

Chassis, suspension, brakes and wheels

Front wheel travel:

140 mm (5.5 inches)

Rear wheel travel:

100 mm (3.9 inches)

Front tyre:

80/100-47P

Rear tyre:

130/90-15 M/C 66P

Front brakes:

Single disc

Front brakes diameter:

282 mm (11.1 inches)

Rear brakes:

Expanding brake

Rear brakes diameter:

130 mm (5.1 inches)

Physical measures and capacities

Dry weight:

144.0 kg (317.5 pounds)

Power/weight ratio:

0.0903 HP/kg

Seat height:

670 mm (26.4 inches) If adjustable, lowest setting.

Overall height:

1,075 mm (42.3 inches)

Overall length:

2,320 mm (91.3 inches)

Overall width:

910 mm (35.8 inches)

Ground clearance:

150 mm (5.9 inches)

Wheelbase:

1,530 mm (60.2 inches)

Other specifications

Further information

Insurance costs

Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.

Parts finder

Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.

Ask questions

Join the 02 Yamaha XVS 125 Drag Star discussion group or the general Yamaha discussion group.

Loans, tests, etc

Search the web for dealers, loan costs, tests, customizing, etc.

Related bikes

List related bikes for comparison of specs.

Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2002 Yamaha XVS 125 Drag Star or advertise any other MC for sale. You can list all 2002 Yamaha XVS 125 Drag Star available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.

Rating sample for this Yamaha bike

Reliability for the 2002 Yamaha XVS 125 Drag Star:

Vote scale

(90.6 out of 100)

Click here for complete rating. You can also compare bikes.
