General information |
|
Model
|

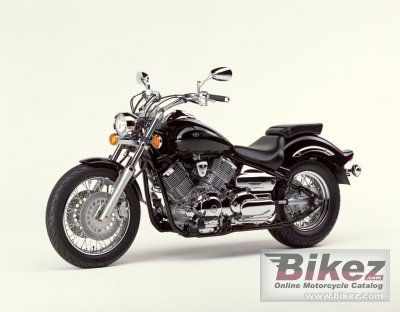

Yamaha XVS 1100 Drag Star |
|
Year of manufacture
|
2002 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1063.0 ccm (64.86 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
62.0 HP (45.3 kW)) @ 5750 RPM |
|
Torque
|
85.0 Nm (8.7 kgf-m or 62.7 ft.lbs) @ 2500 RPM |
|
Compression
|
8.3:1 |
|
Bore x stroke
|
95.0 x 75.0 mm (3.7 x 3.0 inches) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Chassis, suspension, brakes and wheels |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear wheel travel
|
113 mm (4.4 inches) |
|
Front tire
|
110/90-18 61S |
|
Rear tire
|
170/80-15 M/C 77S |
|
Front brakes
|
Dual disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
259.0 kg (571.0 pounds) |
|
Power/weight ratio
|
0.2394 HP/kg |
|
Seat height
|
710 mm (28.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1095 mm (43.1 inches) |
|
Overall length
|
2405 mm (94.7 inches) |
|
Overall width
|
895 mm (35.2 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1640 mm (64.6 inches) |
|
