Yamaha XVS 1100 A DragStar Classic 20062006 Yamaha XVS 1100 A DragStar Classic specifications, pictures, reviews and rating |

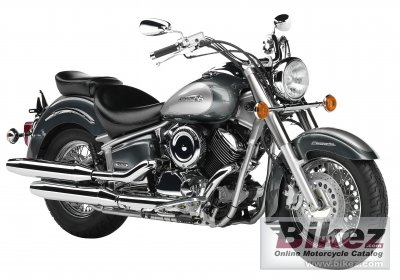

 2006 Yamaha XVS 1100 A DragStar Classic. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| Now this is one serious mass of a motorcycle. The XVS1100A DragStar Classic is your road to a new kind of freedom – a laid-back, super-comfortable cruiser with a big V-twin heart that delivers masses of shuddering torque and a pulsating soundtrack. |
| General information | |
|---|---|
| Model | Yamaha XVS 1100 A DragStar Classic |
| Year of manufacture | 2006 |
| Type | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1063.0 ccm (64.86 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 61.7 HP (45.0 kW)) @ 5750 RPM |
| Torque | 85.0 Nm (8.7 kgf-m or 62.7 ft.lbs) @ 8700 RPM |
| Compression | 8.3:1 |
| Bore x stroke | 95.0 x 75.0 mm (3.7 x 3.0 inches) |
| Fuel system | Carburettor. Mikuni BDS37/2 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiple disc |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic forks |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm link suspension |
| Rear wheel travel | 105 mm (4.1 inches) |
| Front tire | 130/90-(16 |
| Rear tire | 170/80-(15 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Dry weight | 272.0 kg (599.7 pounds) |
| Power/weight ratio | 0.2268 HP/kg |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall height | 1095 mm (43.1 inches) |
| Overall length | 2460 mm (96.9 inches) |
| Overall width | 945 mm (37.2 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1645 mm (64.8 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Other specifications | |
| Starter | Electric |
