Yamaha XVS 1100 A Drag Star Classic 20022002 Yamaha XVS 1100 A Drag Star Classic specifications, pictures, reviews and rating |

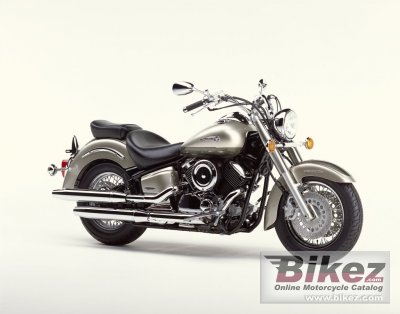

 2002 Yamaha XVS 1100 A Drag Star Classic. Picture by Yamaha. Published with permission.. Submit more pictures.
|
|
| General information | |
|---|---|
| Motorcycle name | Yamaha XVS 1100 A Drag Star Classic |
| Year | 2002 |
| Category | Custom / cruiser |
| Rating | 2.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1063.0 ccm (64.86 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 62.0 HP (45.3 kW)) @ 5750 RPM |
| Torque | 85.0 Nm (8.7 kgf-m or 62.7 ft.lbs) @ 2500 RPM |
| Compression | 8.3:1 |
| Bore x stroke | 95.0 x 75.0 mm (3.7 x 3.0 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear wheel travel | 113 mm (4.4 inches) |
| Front tire | 130/90-16 67S |
| Rear tire | 170/85-15 M/C 77S |
| Front brakes | Dual disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Dry weight | 272.0 kg (599.7 pounds) |
| Power/weight ratio | 0.2279 HP/kg |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall height | 1095 mm (43.1 inches) |
| Overall length | 2465 mm (97.0 inches) |
| Overall width | 945 mm (37.2 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1645 mm (64.8 inches) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Yamaha XVS 1100 A Drag Star Classic discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2002 Yamaha XVS 1100 A Drag Star Classic or advertise any other MC for sale. You can list all 2002 Yamaha XVS 1100 A Drag Star Classic available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
| Rating sample for this Yamaha bike | |
Offroad capabilities for the 2002 Yamaha XVS 1100 A Drag Star Classic:  (22.9 out of 100)Click here for complete rating. You can also compare bikes. |
|
