General information |
|
Model
|

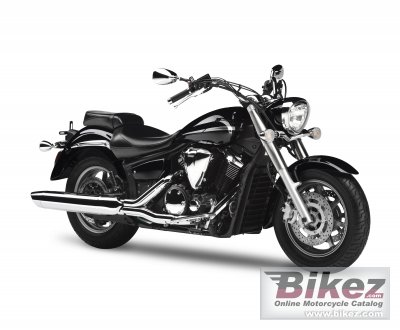

Yamaha XVS1300A Midnight Star |
|
Year
|
2013 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1304.0 ccm (79.57 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
71.7 HP (52.4 kW)) @ 5500 RPM |
|
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 4000 RPM |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
100.0 x 83.0 mm (3.9 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multiple-disc coil spring, wet |
|
Driveline
|
Constant Mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, steel |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
145 mm (5.7 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
135 mm (5.3 inches) |
|
Rear suspension
|
Swingarm, monocross |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
130/90-16 |
|
Rear tire
|
170/70-16 |
|
Front brakes
|
Single disc. Hydraulic |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
303.0 kg (668.0 pounds) |
|
Seat height
|
715 mm (28.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1145 mm (45.1 inches) |
|
Overall length
|
2490 mm (98.0 inches) |
|
Overall width
|
980 mm (38.6 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1690 mm (66.5 inches) |
|
Fuel capacity
|
18.50 litres (4.89 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Oil capacity
|
3.70 litres (3.91 US quarts) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Instruments
|
Analogue speedometer and warning lights. |
