| General information |
|---|

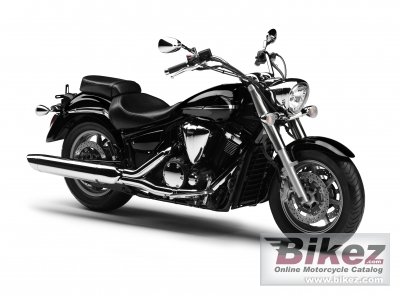

| Model: | Yamaha XVS1300A Midnight Star |
| Year: | 2012 |
| Category: | Custom / cruiser |
| Rating: | 66.4 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1304.00 ccm (79.57 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 71.74 HP (52.4 kW)) @ 5500 RPM |
| Torque: | 106.00 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 4000 RPM |
| Compression: | 9.5:1 |
| Bore x stroke: | 100.0 x 83.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | TCI |
| Lubrication system: | Wet sump |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Multiple-disc coil spring, Wet |
| Driveline: | Constant Mesh, 5-speed |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double cradle |
| Rake (fork angle): | 32.0° |
| Trail: | 145 mm (5.7 inches) |
| Front suspension: | Telescopic forks |
| Front wheel travel: | 135 mm (5.3 inches) |
| Rear suspension: | Swingarm |
| Rear wheel travel: | 110 mm (4.3 inches) |
| Front tyre: | 130/90-16 |
| Rear tyre: | 170/70-B16 |
| Front brakes: | Single disc. Hydraulic |
| Front brakes diameter: | 298 mm (11.7 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 298 mm (11.7 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 303.0 kg (668.0 pounds) |
| Seat height: | 715 mm (28.1 inches) If adjustable, lowest setting. |
| Overall length: | 2,490 mm (98.0 inches) |
| Overall width: | 980 mm (38.6 inches) |
| Ground clearance: | 145 mm (5.7 inches) |
| Wheelbase: | 1,690 mm (66.5 inches) |
| Fuel capacity: | 18.50 litres (4.89 gallons) |
| Oil capacity: | 3.70 litres (0.24 quarts) |
| Other specifications |
|---|
| Color options: | Black |
| Starter: | Electric |
| Instruments: | Analogue speedometer and warning lights. |
