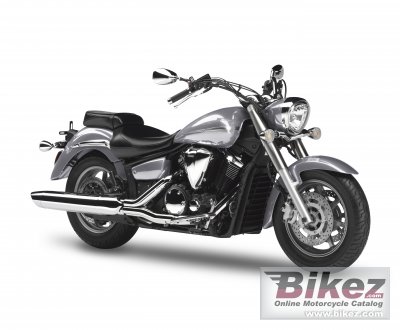

Yamaha XVS1300A Midnight Star 20092009 Yamaha XVS1300A Midnight Star specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The Midnight Star 1300 knows which rules of the cruiser bible to break and which to obey. The 60-degree V-twin has the fins of an air-cooled cruiser, but is in fact a hi-tech, liquid-cooled, fuel-injected eight-valve engine. |
| General information | |
|---|---|
| Motorcycle name | Yamaha XVS1300A Midnight Star |
| Year model | 2009 |
| Type | Custom / cruiser |
| Rating | 3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1304.0 ccm (79.57 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 71.7 HP (52.4 kW)) @ 5500 RPM |
| Torque | 106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 10800 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 100.0 x 83.0 mm (3.9 x 3.3 inches) |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle |
| Trail | 145 mm (5.7 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 135 mm (5.3 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 110 mm (4.3 inches) |
| Front tire | 130/90-M16 |
| Rear tire | 170/70-B16 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 298 mm (11.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 303.0 kg (668.0 pounds) |
| Seat height | 715 mm (28.1 inches) If adjustable, lowest setting. |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 2490 mm (98.0 inches) |
| Overall width | 980 mm (38.6 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1690 mm (66.5 inches) |
| Fuel capacity | 18.50 litres (4.89 US gallons) |
| Oil capacity | 3.70 litres (3.91 US quarts) |
| Other specifications | |
| Color options | Blue, black, silver |
| Starter | Electric |
