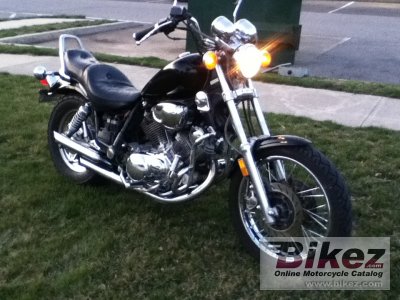

Yamaha XV 700 SS 19861986 Yamaha XV 700 SS specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Yamaha XV 700 SS |
| Year model | 1986 |
| Type | Custom / cruiser |
| Price as new | US$ 3049. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 699.0 ccm (42.65 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 56.0 HP (40.9 kW)) @ 7000 RPM |
| Torque | 58.8 Nm (6.0 kgf-m or 43.4 ft.lbs) @ 6000 RPM |
| Top speed | 170.0 km/h (105.6 mph) |
| Maximum RPM | 9500 |
| Compression | 9.0:1 |
| Bore x stroke | 80.2 x 69.2 mm (3.2 x 2.7 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Hitachi 40 mm |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Transistor Controlled Ignition (TCI) |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet plate |
| Fuel consumption | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
| Greenhouse gases | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Double chromed pipes with common mid-chamber |
| Chassis, suspension, brakes and wheels | |
| Frame type | Backbone pressed steel - engine is a stressed member |
| Rake (fork angle) | 32.0° |
| Front suspension | Telescopic forks |
| Front wheel travel | 145 mm (5.7 inches) |
| Rear suspension | Dual Kayaba Shocks |
| Front tire | 100/90-19 |
| Rear tire | 140/90-15 |
| Front brakes | Double disc. Single piston calipers |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 225.0 kg (496.0 pounds) |
| Weight incl. oil, gas, etc | 238.0 kg (524.7 pounds) |
| Power/weight ratio | 0.2489 HP/kg |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall length | 2235 mm (88.0 inches) |
| Overall width | 840 mm (33.1 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Oil capacity | 3.00 litres (3.17 US quarts) |
| Other specifications | |
| Starter | Electric |
| Modifications compared to previous model | Spoked wheel, improved starter with bendix solenoid. |
