Yamaha XV 535 Virago 19951995 Yamaha XV 535 Virago specifications, pictures, reviews and rating |

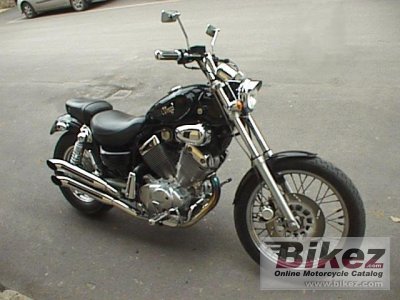

1995 Yamaha XV 535 Virago. Image credits - Carlo.
| General information | |
|---|---|
| Model | Yamaha XV 535 Virago |
| Year | 1995 |
| Category | Custom / cruiser |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 535.0 ccm (32.65 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 46.0 HP (33.6 kW)) @ 7500 RPM |
| Torque | 47.1 Nm (4.8 kgf-m or 34.7 ft.lbs) @ 6000 RPM |
| Top speed | 160.9 km/h (100.0 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 76.0 x 59.0 mm (3.0 x 2.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni BDS34/2 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Fuel consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Pressed backbone |
| Rake (fork angle) | 31.5° |
| Trail | 125 mm (4.9 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 85 mm (3.3 inches) |
| Front tire | 3.00-19 |
| Rear tire | 140/90-15 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Dry weight | 182.0 kg (401.2 pounds) |
| Power/weight ratio | 0.2527 HP/kg |
| Seat height | 720 mm (28.3 inches) If adjustable, lowest setting. |
| Overall length | 2225 mm (87.6 inches) |
| Wheelbase | 1520 mm (59.8 inches) |
| Fuel capacity | 13.50 litres (3.57 US gallons) |
| Reserve fuel capacity | 2.50 litres (0.66 US gallons) |
| Oil capacity | 3.20 litres (3.38 US quarts) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 20W-40 |
| Oil filter | SN145 |
| Brake fluid | DOT 3/4 |
| Battery | GM12AZ-3A/12V, 12Ah |
| Spark plugs | BP7ES or W22EP-U |
| Idle speed | 1200 RPM |
| Tire pressure front | 29 PSI (2 Bar or 200 kPa) |
| Tire pressure rear | 33 PSI (2.3 Bar or 230 kPa) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
