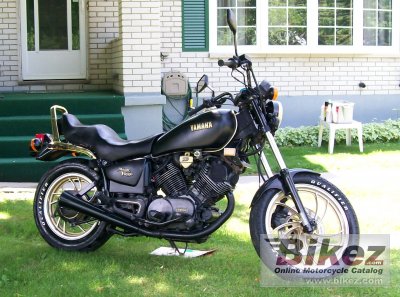

Yamaha XV750 Virago 19831983 Yamaha XV750 Virago specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Yamaha XV750 Virago |
| Year | 1983 |
| Category | Custom / cruiser |
| Price as new | US$ 2979. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 748.0 ccm (45.64 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 52.0 HP (38.0 kW)) @ 7000 RPM |
| Torque | 64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 5750 RPM |
| Top speed | 179.0 km/h (111.2 mph) |
| 1/4 mile (0.4 km) | 13.44 seconds |
| Max RPM | 7500 |
| Compression | 8.7:1 |
| Bore x stroke | 83.0 x 69.2 mm (3.3 x 2.7 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Dual Hitachi 40mm constant vacuum |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI- Transistor Control Ignition |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet multi-plate |
| Fuel consumption | 5.90 litres/100 km (16.9 km/l or 39.87 mpg) |
| Greenhouse gases | 136.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Double stinless steel |
| Chassis, suspension, brakes and wheels | |
| Frame type | Pressed steel overhead backbone with tubular and square section swing arm. Engine is used as a stress member. |
| Rake (fork angle) | 29.0° |
| Trail | 133 mm (5.2 inches) |
| Front suspension | Telescopic forks air adjustable |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Mono-shock air adjustable |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | 3.50-19 |
| Rear tire | 130/90-16 |
| Front brakes | Single disc. Single piston |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake). 2 Shoe Expanding Drum |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities | |
| Dry weight | 225.0 kg (496.0 pounds) |
| Power/weight ratio | 0.2311 HP/kg |
| Seat height | 672 mm (26.5 inches) If adjustable, lowest setting. |
| Overall width | 850 mm (33.5 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1520 mm (59.8 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Reserve fuel capacity | 2.60 litres (0.69 US gallons) |
| Other specifications | |
| Starter | Electric |
| Modifications compared to previous model | Solid front fender, redesigned seat. |
