General information |
|
Model
|

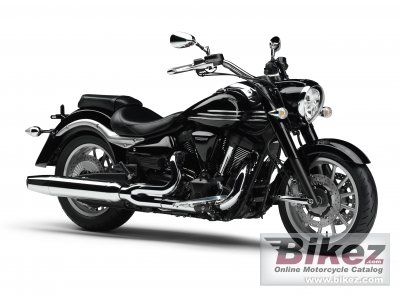

Yamaha XV1900A Midnight Star |
|
Year of manufacture
|
2013 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1854.0 ccm (113.13 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Twin-spark cylinder heads |
|
Output
|
89.0 HP (65.0 kW)) @ 4750 RPM |
|
Torque
|
155.1 Nm (15.8 kgf-m or 114.4 ft.lbs) @ 2500 RPM |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
100.0 x 118.0 mm (3.9 x 4.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Twin-bore Electronic Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
TCI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, Multiple Disc |
|
Driveline
|
Constant Mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium, double cradle |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
152 mm (6.0 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
152 mm (6.0 inches) |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
190/60-R17 |
|
Front brakes
|
Single disc. Hydraulic |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Wheels
|
12-spoke cast alloy |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
346.0 kg (762.8 pounds) |
|
Seat height
|
705 mm (27.8 inches) If adjustable, lowest setting. |
|
Overall height
|
1125 mm (44.3 inches) |
|
Overall length
|
2580 mm (101.6 inches) |
|
Overall width
|
1100 mm (43.3 inches) |
|
Ground clearance
|
155 mm (6.1 inches) |
|
Wheelbase
|
1715 mm (67.5 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Oil capacity
|
5.20 litres (5.49 US quarts) |
|
Other specifications |
|
Color options
|
Yamaha Black |
|
Starter
|
Electric |
