Yamaha XT 660R 20102010 Yamaha XT 660R specifications, pictures, reviews and rating |

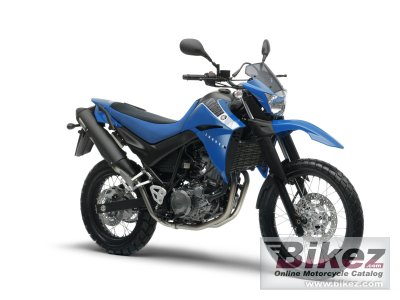

2010 Yamaha XT 660R. Image credits - Yamaha.
| Yamaha's profilation of this bike |
| Tall, light and slim, with a fuel-injected 660cc single-cylinder engine, the XT660R is built to explore the roughest terrain and to survive whatever the world throws at it. It’s a highly evolved member of the legendary XT family, which thrives on long or short journeys – from once-in-a-lifetime adventures to the everyday commute. |
| General information | |
|---|---|
| Model name | Yamaha XT 660R |
| Year model | 2010 |
| Type | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 660.0 ccm (40.27 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 47.3 HP (34.6 kW)) |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 6100 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 100.0 x 84.0 mm (3.9 x 3.3 inches) |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel tube, diamond shaped |
| Trail | 107 mm (4.2 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 225 mm (8.9 inches) |
| Rear suspension | Swingarm (monocross) |
| Rear wheel travel | 200 mm (7.9 inches) |
| Front tire | 90/90-M21 |
| Rear tire | 130/80-M17 |
| Front brakes | Single disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 181.0 kg (399.0 pounds) |
| Seat height | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2240 mm (88.2 inches) |
| Overall width | 845 mm (33.3 inches) |
| Ground clearance | 210 mm (8.3 inches) |
| Wheelbase | 1505 mm (59.3 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Oil capacity | 2.90 litres (3.06 US quarts) |
| Other specifications | |
| Color options | Blue, black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Yamaha XT 660R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Yamaha XT 660R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Yamaha bike | |
Engine performance for the 2010 Yamaha XT 660R:  (86.5 out of 100)Click here for complete rating. |
|
