Yamaha XT 660 X Supermotard 20042004 Yamaha XT 660 X Supermotard specifications, pictures, reviews and rating |

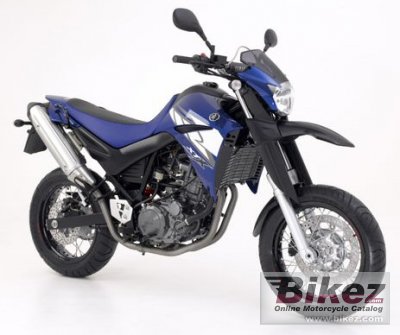

 2004 Yamaha XT 660 X Supermotard. Picture credits - Yamaha. Submit more pictures. |
|
| Yamaha's profilation of this bike |
| Yamaha’s name is synonymous with challenging and innovative designs,and the radical new XT660X is the first production supermotard to be offered by a non-European manufacturer. Tuned to kick out massive low to mid-range torque, this 660cc liquid-cooled fuel-injected single is equipped with lightweight 17-inch spoked wheels running with extra-wide rubber for outstanding roadholding – while the large diameter floating front disc generates plenty of stopping power. |
| General information | |
|---|---|
| Model | Yamaha XT 660 X Supermotard |
| Model year | 2004 |
| Category | Super motard |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 659.0 ccm (40.21 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 47.3 HP (34.5 kW)) @ 6000 RPM |
| Torque | 58.4 Nm (6.0 kgf-m or 43.1 ft.lbs) @ 5250 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 100.0 x 84.0 mm (3.9 x 3.3 inches) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork, diameter 43mm |
| Front wheel travel | 200 mm (7.9 inches) |
| Rear suspension | Monocross with linkage |
| Rear wheel travel | 191 mm (7.5 inches) |
| Front tire | 120/70-17 |
| Rear tire | 160/60-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 173.0 kg (381.4 pounds) |
| Power/weight ratio | 0.2736 HP/kg |
| Seat height | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Overall height | 1349 mm (53.1 inches) |
| Overall length | 2131 mm (83.9 inches) |
| Overall width | 860 mm (33.9 inches) |
| Ground clearance | 200 mm (7.9 inches) |
| Wheelbase | 1485 mm (58.5 inches) |
| Other specifications | |
| Color options | Racing blue, Yamaha black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Yamaha XT 660 X Supermotard discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2004 Yamaha XT 660 X Supermotard for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Yamaha bike | |
Touring capabilities for the 2004 Yamaha XT 660 X Supermotard:  (61.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
