Yamaha XT 660 R 20042004 Yamaha XT 660 R specifications, pictures, reviews and rating |

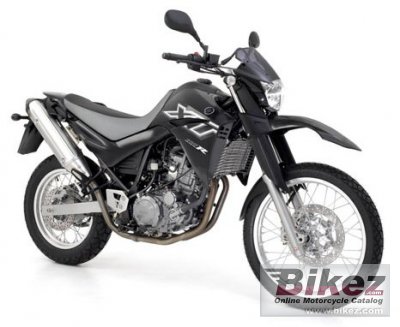

 2004 Yamaha XT 660 R. Picture credits - Yamaha. Submit more pictures. |
|
| Yamaha's profilation of this bike |
| Yamaha’s name has been synonymous with big singles for nearly 30 years, and the all-new XT660R is the very latest addition to the long and distinguished line of XT adventure models. |
| General information | |
|---|---|
| Model name | Yamaha XT 660 R |
| Year model | 2004 |
| Type | Enduro / offroad |
| Rating | 3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 659.0 ccm (40.21 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 48.0 HP (35.0 kW)) @ 6000 RPM |
| Torque | 58.4 Nm (6.0 kgf-m or 43.1 ft.lbs) @ 5250 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 100.0 x 84.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork, diameter 43 mm |
| Front wheel travel | 225 mm (8.9 inches) |
| Rear suspension | Monocross with linkage |
| Rear wheel travel | 200 mm (7.9 inches) |
| Front tire | 90/90-M21 |
| Rear tire | 130/80-M17 |
| Front brakes | Single disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 165.0 kg (363.8 pounds) |
| Power/weight ratio | 0.2909 HP/kg |
| Seat height | 855 mm (33.7 inches) If adjustable, lowest setting. |
| Overall height | 1235 mm (48.6 inches) |
| Overall length | 2240 mm (88.2 inches) |
| Overall width | 850 mm (33.5 inches) |
| Ground clearance | 200 mm (7.9 inches) |
| Wheelbase | 1500 mm (59.1 inches) |
| Other specifications | |
| Color options | Racing blue, Yamaha black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Yamaha XT 660 R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2004 Yamaha XT 660 R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Fun-factor for the 2004 Yamaha XT 660 R:  (90.6 out of 100)Click here for complete rating. You can also compare bikes. |
|
