Yamaha XT 225 20052005 Yamaha XT 225 specifications, pictures, reviews and rating |

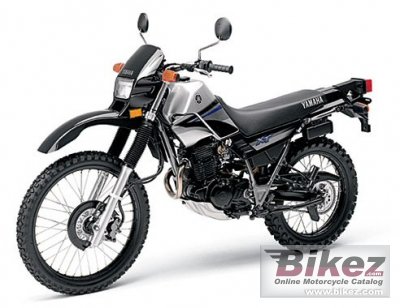

 2005 Yamaha XT 225. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| The XT225 was built for those who want a versatile on/off-road machine that´s easy on the pocket book, and easy to handle. |
| General information | |
|---|---|
| Model | Yamaha XT 225 |
| Year of manufacture | 2005 |
| Type | Allround |
| Price as new | US$ 4099. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 223.0 ccm (13.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 70.0 x 58.0 mm (2.8 x 2.3 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 24.0° |
| Front suspension | Telescopic fork |
| Front wheel travel | 226 mm (8.9 inches) |
| Rear suspension | Swingarm w/rebound-adjustable single shock |
| Rear wheel travel | 191 mm (7.5 inches) |
| Front tire | 2.75-21 |
| Rear tire | 120/80-18 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1161 mm (45.7 inches) |
| Overall length | 2070 mm (81.5 inches) |
| Overall width | 805 mm (31.7 inches) |
| Ground clearance | 284 mm (11.2 inches) |
| Wheelbase | 1349 mm (53.1 inches) |
| Fuel capacity | 8.70 litres (2.30 US gallons) |
| Other specifications | |
| Color options | Liquid Silver/Raven |
| Update specs | Report missing specs or required updates. |
