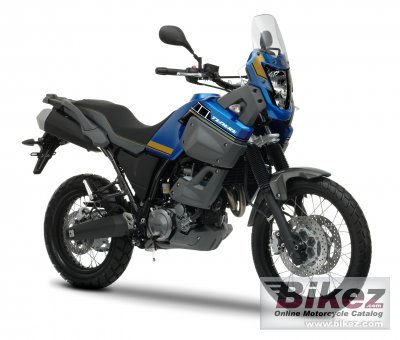

Yamaha XT660Z Tenere ABS 20132013 Yamaha XT660Z Tenere ABS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Engineered to be tough and resilient, the XT660Z Ténéré is built to conquer all challenges. Equipped with impact protectors, you can confidently challenge the unknown. The steel tube diamond-shaped chassis protects the engine so you can dominate the roughest terrain without fear. |
| General information | |
|---|---|
| Model name | Yamaha XT660Z Tenere ABS |
| Year of manufacture | 2013 |
| Type | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 660.0 ccm (40.27 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 46.9 HP (34.3 kW)) @ 6000 RPM |
| Torque | 58.0 Nm (5.9 kgf-m or 42.8 ft.lbs) @ 5920 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 100.0 x 84.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel tube diamond shape |
| Rake (fork angle) | 28.0° |
| Trail | 113 mm (4.4 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 210 mm (8.3 inches) |
| Rear suspension | Linked monoshock with spring preload adjustment |
| Rear wheel travel | 200 mm (7.9 inches) |
| Front tire | 90/90-21 |
| Rear tire | 130/80-17 |
| Front brakes | Single disc. ABS. Hydraulic. |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. ABS. Hydraulic. |
| Diameter | 245 mm (9.6 inches) |
| Seat | Dual seat |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 212.5 kg (468.5 pounds) |
| Seat height | 896 mm (35.3 inches) If adjustable, lowest setting. |
| Overall height | 1477 mm (58.1 inches) |
| Overall length | 2246 mm (88.4 inches) |
| Overall width | 865 mm (34.1 inches) |
| Ground clearance | 260 mm (10.2 inches) |
| Wheelbase | 1500 mm (59.1 inches) |
| Fuel capacity | 23.00 litres (6.08 US gallons) |
| Oil capacity | 2.90 litres (3.06 US quarts) |
| Other specifications | |
| Color options | Matt gray, Yamaha Blue |
| Starter | Electric |
| Comments | Windshield. |
