General information |
|
Model name
|

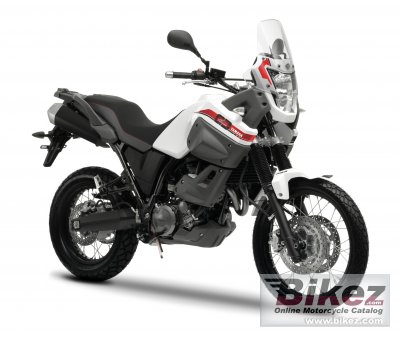

Yamaha XT660Z Tenere |
|
Year model
|
2013 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
660.0 ccm (40.27 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
46.9 HP (34.3 kW)) @ 6000 RPM |
|
Torque
|
58.0 Nm (5.9 kgf-m or 42.8 ft.lbs) @ 5920 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
100.0 x 84.0 mm (3.9 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Constant Mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube diamond shape |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
113 mm (4.4 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
Linked monoshock with spring preload adjustment |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc. Hydraulic |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc. Hydraulic |
|
Diameter
|
245 mm (9.6 inches) |
|
Seat
|
Dual seat |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
208.5 kg (459.7 pounds) |
|
Seat height
|
896 mm (35.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1477 mm (58.1 inches) |
|
Overall length
|
2246 mm (88.4 inches) |
|
Overall width
|
865 mm (34.1 inches) |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Oil capacity
|
2.90 litres (3.06 US quarts) |
|
Other specifications |
|
Color options
|
Matt gray, Yamaha Blue |
|
Starter
|
Electric |
|
Comments
|
Windshield. |
