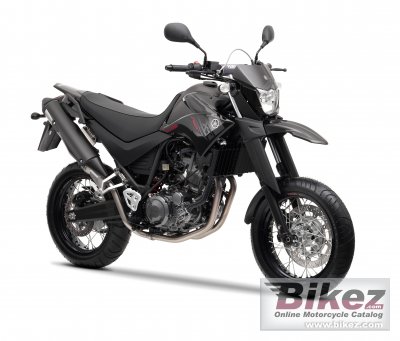

Yamaha XT660X 20122012 Yamaha XT660X specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The XT660X – stick it in a tight corner and watch it come out fighting. |
| General information | |
|---|---|
| Motorcycle name | Yamaha XT660X |
| Year of manufacture | 2012 |
| Type | Super motard |
| Rating | 2.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 660.0 ccm (40.27 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 47.3 HP (34.6 kW)) @ 6000 RPM |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5250 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 100.0 x 84.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Driveline | Constant Mesh, 5-speed |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel tube, diamond shaped |
| Rake (fork angle) | 26.0° |
| Trail | 94 mm (3.7 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 200 mm (7.9 inches) |
| Rear suspension | Swingarm (monocross) |
| Rear wheel travel | 200 mm (7.9 inches) |
| Front tire | 120/70-R17 |
| Rear tire | 160/60-R17 |
| Front brakes | Single disc. Hydraulic |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Hydraulic |
| Diameter | 245 mm (9.6 inches) |
| Wheels | Aluminium rims |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 181.0 kg (399.0 pounds) |
| Seat height | 865 mm (34.1 inches) If adjustable, lowest setting. |
| Overall height | 1170 mm (46.1 inches) |
| Overall length | 2175 mm (85.6 inches) |
| Overall width | 860 mm (33.9 inches) |
| Ground clearance | 205 mm (8.1 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Oil capacity | 2.90 litres (3.06 US quarts) |
| Other specifications | |
| Color options | Black, blue, white |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
