General information |
|
Model
|

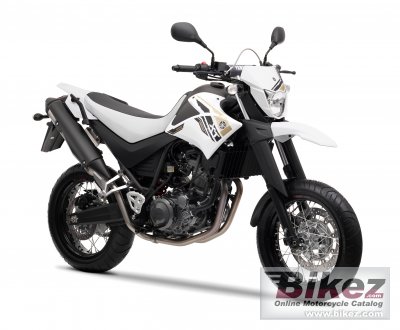

Yamaha XT660X |
|
Year model
|
2011 |
|
Type
|
Super motard |
|
Rating
|
2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
660.0 ccm (40.27 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
47.3 HP (34.6 kW)) |
|
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 6100 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
100.0 x 84.0 mm (3.9 x 3.3 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc coil spring |
|
Driveline
|
Constant Mesh, 5-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube, diamond shaped |
|
Trail
|
94 mm (3.7 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
200 mm (7.9 inches) |
|
Rear suspension
|
Swingarm (monocross) |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
120/70-R17 |
|
Rear tire
|
160/60-R17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
17 inch aluminium wheel rims |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
181.0 kg (399.0 pounds) |
|
Seat height
|
865 mm (34.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1170 mm (46.1 inches) |
|
Overall length
|
2175 mm (85.6 inches) |
|
Overall width
|
860 mm (33.9 inches) |
|
Ground clearance
|
205 mm (8.1 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Oil capacity
|
2.90 litres (3.06 US quarts) |
|
Other specifications |
|
Color options
|
Red, blue, white |
