General information |
|
Model name
|

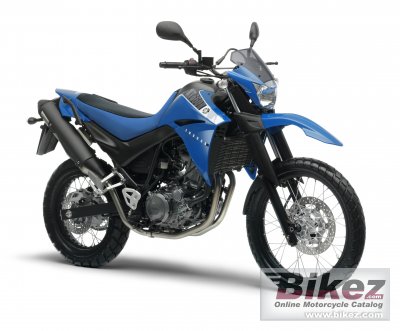

Yamaha XT660R |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
660.0 ccm (40.27 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
47.3 HP (34.6 kW)) @ 6000 RPM |
|
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 6100 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
100.0 x 84.0 mm (3.9 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc coil spring |
|
Driveline
|
Constant Mesh, 5-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube, diamond shaped |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
107 mm (4.2 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
225 mm (8.9 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
90/90-M21 |
|
Rear tire
|
130/80-M17 |
|
Front brakes
|
Single disc. Hydraulic |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc. Hydraulic |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
165.0 kg (363.8 pounds) |
|
Weight incl. oil, gas, etc
|
181.0 kg (399.0 pounds) |
|
Power/weight ratio
|
0.2869 HP/kg |
|
Seat height
|
875 mm (34.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1230 mm (48.4 inches) |
|
Overall length
|
2240 mm (88.2 inches) |
|
Overall width
|
845 mm (33.3 inches) |
|
Ground clearance
|
210 mm (8.3 inches) |
|
Wheelbase
|
1505 mm (59.3 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Oil capacity
|
2.90 litres (3.06 US quarts) |
|
Other specifications |
|
Color options
|
Blue, white |
|
Starter
|
Electric |
