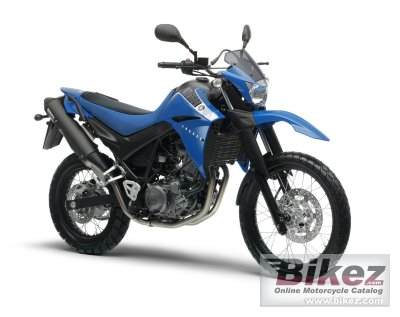

Yamaha XT660R 20112011 Yamaha XT660R specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Our legendary adventure bikes were built for the biggest adventures; just you, your bike and a shimmering horizon. |
| General information | |
|---|---|
| Motorcycle name | Yamaha XT660R |
| Model year | 2011 |
| Category | Enduro / offroad |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 660.0 ccm (40.27 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 47.3 HP (34.6 kW)) |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 6100 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 100.0 x 84.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Driveline | Constant Mesh, 5-speed |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel tube, diamond shaped |
| Trail | 107 mm (4.2 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 225 mm (8.9 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 200 mm (7.9 inches) |
| Front tire | 90/90-M21 |
| Rear tire | 130/80-M17 |
| Front brakes | Single disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 165.0 kg (363.8 pounds) |
| Weight incl. oil, gas, etc | 181.0 kg (399.0 pounds) |
| Power/weight ratio | 0.2869 HP/kg |
| Seat height | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2240 mm (88.2 inches) |
| Overall width | 845 mm (33.3 inches) |
| Ground clearance | 210 mm (8.3 inches) |
| Wheelbase | 1505 mm (59.3 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Oil capacity | 2.90 litres (3.06 US quarts) |
| Other specifications | |
| Color options | Blue, black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Yamaha XT660R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
