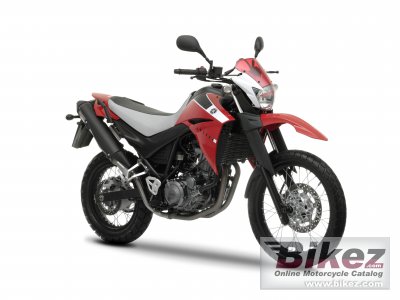

2009 Yamaha XT660R

Yamaha XT660R 2009


2009 Yamaha XT660R specifications, pictures, reviews and rating

Yamaha's profilation of this bike
The XT660R is the tough, relentless, high-spec all-rounder that riders the world over trust, because the XT brand has been putting the adventure into riders’ lives for four decades now.

General information
Model name Yamaha XT660R
Year model 2009
Type Enduro / offroad
Rating 3.3  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Engine size 660.0 ccm (40.27 cubic inches)
Type of engine Single cylinder, four-stroke
Effect 47.3 HP (34.5 kW)) @ 6000 RPM
Torque 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 6100 RPM
Compression 10.0:1
Bore x stroke 100.0 x 84.0 mm (3.9 x 3.3 inches)
Fuel system Injection
Fuel control Single Overhead Cams (SOHC)
Ignition TCI
Lubrication system Dry sump
Cooling system Liquid
Gearbox 5-speed
Transmission type Chain (final drive)
Clutch Wet, multiple-disc coil spring
Chassis, suspension, brakes and wheels
Frame type Steel tube, diamond shaped
Trail 107 mm (4.2 inches)
Front suspension Telescopic forks
Front wheel travel 225 mm (8.9 inches)
Rear suspension Swingarm (monocross)
Rear wheel travel 200 mm (7.9 inches)
Front tire 90/90-M21
Rear tire 130/80-M17
Front brakes Single disc
Diameter 298 mm (11.7 inches)
Rear brakes Single disc
Diameter 245 mm (9.6 inches)
Physical measures and capacities
Weight incl. oil, gas, etc 181.0 kg (399.0 pounds)
Seat height 865 mm (34.1 inches) If adjustable, lowest setting.
Overall height 1230 mm (48.4 inches)
Overall length 2240 mm (88.2 inches)
Overall width 845 mm (33.3 inches)
Ground clearance 210 mm (8.3 inches)
Wheelbase 1505 mm (59.3 inches)
Fuel capacity 15.00 litres (3.96 US gallons)
Oil capacity 2.90 litres (3.06 US quarts)
Other specifications
Color options Red, black
Starter Electric
Comments Adventure bike with combined on/off-road capabilities.
