Yamaha XT125X 20092009 Yamaha XT125X specifications, pictures, reviews and rating |

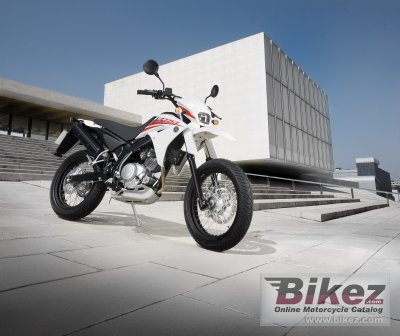

 2009 Yamaha XT125X. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| Supermoto is the hot look for the street – and the XT125X is urban cool in a rugged package inspired by XT engineering genius. Built for the buzz, this XT uses Supermotard-derived technology to deliver big fun on the city streets. |
| General information | |
|---|---|
| Model | Yamaha XT125X |
| Model year | 2009 |
| Category | Super motard |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 9.8 HP (7.1 kW)) @ 10000 RPM |
| Torque | 10.1 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 5500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Clutch | Wet, multiple disc |
| Chassis, suspension, brakes and wheels | |
| Trail | 78 mm (3.1 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 175 mm (6.9 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 190 mm (7.5 inches) |
| Front tire | 100/80-S17 |
| Rear tire | 130/70-S17 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 120.0 kg (264.6 pounds) |
| Seat height | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Overall length | 2050 mm (80.7 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 190 mm (7.5 inches) |
| Wheelbase | 1335 mm (52.6 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Oil capacity | 1.20 litres (1.27 US quarts) |
| Other specifications | |
| Starter | Electric & kick |
