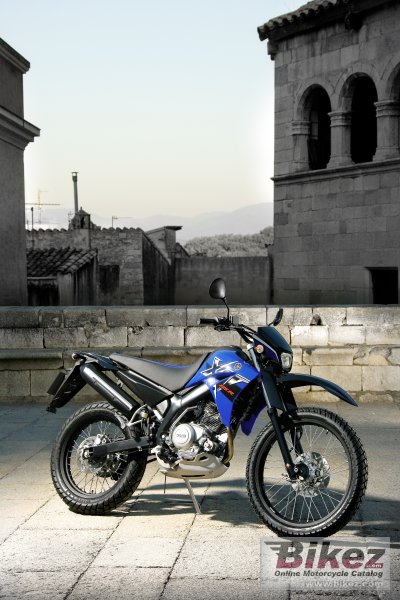

Yamaha XT125R 20092009 Yamaha XT125R specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| If you like adventure you’ve come to the right place. The XT125R is built to take you places other 125s wouldn’t dare. The rugged on/off-road design is the result of decades of Yamaha dirt-racing success. |
| General information | |
|---|---|
| Motorcycle name | Yamaha XT125R |
| Year of manufacture | 2009 |
| Type | Enduro / offroad |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 9.8 HP (7.1 kW)) @ 10000 RPM |
| Torque | 10.1 Nm (1.0 kgf-m or 7.4 ft.lbs) |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple disc |
| Chassis, suspension, brakes and wheels | |
| Frame type | Diamond shaped |
| Trail | 114 mm (4.5 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 170 mm (6.7 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 190 mm (7.5 inches) |
| Front tire | 90/90-S21 |
| Rear tire | 120/80-S18 |
| Front brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 120.0 kg (264.6 pounds) |
| Seat height | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Overall height | 1140 mm (44.9 inches) |
| Overall length | 2110 mm (83.1 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 220 mm (8.7 inches) |
| Wheelbase | 1335 mm (52.6 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Oil capacity | 1.20 litres (1.27 US quarts) |
| Other specifications | |
| Color options | Blue, black |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha XT125R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
