Yamaha's profilation of this bike |
If you like adventure you’ve come to the right place. The XT125R is built to take you places other 125s wouldn’t dare. The rugged on/off-road design is the result of decades of Yamaha dirt-racing success. |
General information |
Motorcycle name
|

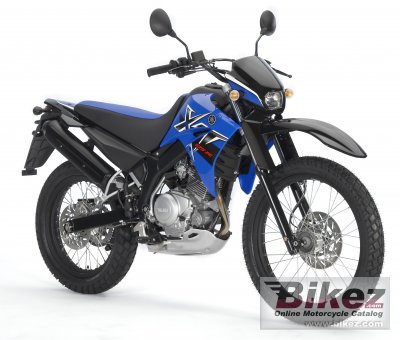

Yamaha XT125R |
Model year
|
2008 |
Category
|
Super motard |
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
124.0 ccm (7.57 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power output
|
9.8 HP (7.1 kW)) @ 8500 RPM |
Torque
|
9.5 Nm (1.0 kgf-m or 7.0 ft.lbs) @ 2100 RPM |
Compression
|
10.0:1 |
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Gearbox
|
5-speed |
Clutch
|
Wet, multiple disc |
Chassis, suspension, brakes and wheels |
Frame type
|
- |
Front suspension
|
Hydraulic telescopic forks |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Monocross |
Rear wheel travel
|
120 mm (4.7 inches) |
Front tire
|
90/90-21 |
Rear tire
|
120/80-18 |
Front brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
118.0 kg (260.1 pounds) |
Power/weight ratio
|
0.0829 HP/kg |
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
Overall length
|
1995 mm (78.5 inches) |
Overall width
|
840 mm (33.1 inches) |
Ground clearance
|
220 mm (8.7 inches) |
Wheelbase
|
1335 mm (52.6 inches) |
Fuel capacity
|
10.00 litres (2.64 US gallons) |
Other specifications |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
