Yamaha XS 650 SE 19831983 Yamaha XS 650 SE specifications, pictures, reviews and rating |

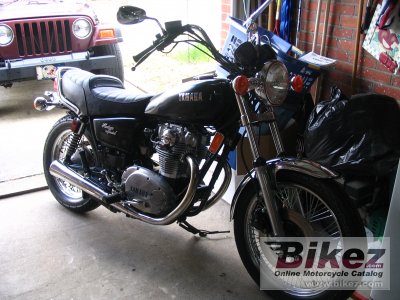

 1983 Yamaha XS 650 SE. Darrin Altieri. Submit more pictures.
|
|
| General information | |
|---|---|
| Model name | Yamaha XS 650 SE |
| Model year | 1983 |
| Category | Classic |
| Rating | 3.5 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 654.0 ccm (39.91 cubic inches) |
| Engine type | Twin, four-stroke |
| Power output | 48.0 HP (35.0 kW)) @ 7100 RPM |
| Top speed | 156.0 km/h (96.9 mph) |
| Compression | 8.4:1 |
| Bore x stroke | 75.0 x 74.0 mm (3.0 x 2.9 inches) |
| Valves per cylinder | 2 |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 3.50-19 |
| Rear tire | 130/90-16 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 220.0 kg (485.0 pounds) |
| Fuel capacity | 11.50 litres (3.04 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 83 Yamaha XS 650 SE discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 1983 Yamaha XS 650 SE discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Offroad capabilities for the 1983 Yamaha XS 650 SE:  (35.8 out of 100)Click here for complete rating. You can also compare bikes. |
|
