Yamaha XS 360 1977

1977 Yamaha XS 360 specifications, pictures, reviews and rating

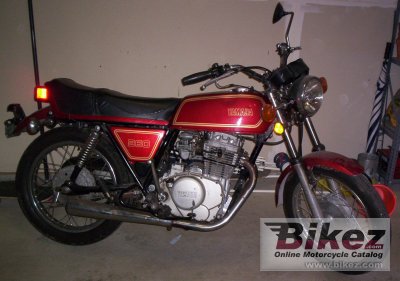

1977 Yamaha XS 360. Picture credits - Paul Armendariz. Submit more pictures.

1977 Yamaha XS 360

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
4 reviews available
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Yamaha XS 360
Year:	1977
Category:	Classic
Rating:	69.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	358.00 ccm (21.85 cubic inches)
Engine type:	Twin, four-stroke
Power:	27.00 HP (19.7 kW)) @ 8000 RPM
Top speed:	145.0 km/h (90.1 mph)
Compression:	8.7:1
Bore x stroke:	66.0 x 52.4 mm (2.6 x 2.1 inches)
Valves per cylinder:	2
Fuel control:	Overhead Cams (OHC)
Cooling system:	Air
Gearbox:	6-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front tyre:	3.00-18
Rear tyre:	3.50-18
Front brakes:	Single disc
Rear brakes:	Single disc
Physical measures and capacities
Weight incl. oil, gas, etc:	176.0 kg (388.0 pounds)
Fuel capacity:	11.00 litres (2.91 gallons)
Other specifications
Further information
Insurance costs	Get a US insurance quote from Progressive.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 77 Yamaha XS 360 discussion group or the general Yamaha discussion group.
Related bikes	List related bikes for comparison of specs.
