General information |
|
Model name
|

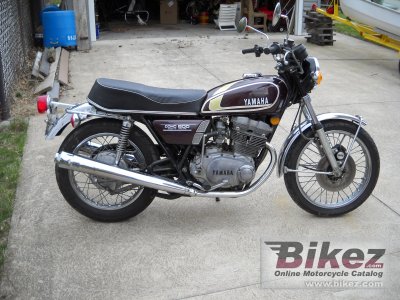

Yamaha XS500B |
|
Model year
|
1975 |
|
Category
|
Classic |
|
Rating
|
3.6 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
498.0 ccm (30.39 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Top speed
|
180.0 km/h (111.8 mph) |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
73.0 x 59.6 mm (2.9 x 2.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Two Keihin CV32 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
battery, timing 38* BTDC, point gap .012-.018 in. |
|
Lubrication system
|
Wet sump, two pumps |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multi-disc |
|
Fuel consumption
|
2.80 litres/100 km (35.7 km/l or 84.01 mpg) |
|
Greenhouse gases
|
65.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Twin pipes, bridged |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubing double-cradle |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
117 mm (4.6 inches) |
|
Front suspension
|
Inverted forks |
|
Front tire
|
3.25-19 |
|
Rear tire
|
3.50-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2150 mm (84.6 inches) |
|
Overall width
|
835 mm (32.9 inches) |
|
Ground clearance
|
155 mm (6.1 inches) |
|
Wheelbase
|
1400 mm (55.1 inches) |
|
Fuel capacity
|
12.86 litres (3.40 US gallons) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Modifications compared to previous model
|
Last XS500 year w/spoked wheels. Uses one of two different oil filters due to mid-year change in mounting plate. Air and oil filters long discontinued. |
