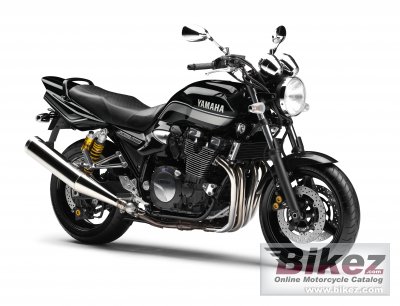

Yamaha XJR 1300 20122012 Yamaha XJR 1300 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The chunky 43 mm front forks, three-spoke alloy wheels and monobloc 4-piston front brake calipers with floating discs add even more muscularity. This is a machine that comes with style and size. |
| General information | |
|---|---|
| Motorcycle name | Yamaha XJR 1300 |
| Model year | 2012 |
| Category | Naked bike |
| Rating | 3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 1251.0 ccm (76.34 cubic inches) |
| Engine type | In-line four, four-stroke |
| Engine details | Forward-inclined parallel cylinders |
| Power output | 98.0 HP (71.5 kW)) @ 8000 RPM |
| Torque | 108.4 Nm (11.1 kgf-m or 80.0 ft.lbs) @ 6000 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 79.0 x 63.8 mm (3.1 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Driveline | Constant Mesh, 5-speed |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel double cradle |
| Rake (fork angle) | 25.0° |
| Trail | 100 mm (3.9 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. Hydraulic |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. Hydraulic |
| Diameter | 267 mm (10.5 inches) |
| Wheels | Three-spoke alloy wheels |
| Physical measures and capacities | |
| Dry weight | 222.0 kg (489.4 pounds) |
| Weight incl. oil, gas, etc | 245.0 kg (540.1 pounds) |
| Power/weight ratio | 0.4414 HP/kg |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 2175 mm (85.6 inches) |
| Overall width | 765 mm (30.1 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Oil capacity | 4.20 litres (4.44 US quarts) |
| Other specifications | |
| Color options | Midnight black |
| Starter | Electric |
