Yamaha's profilation of this bike |
It´s an eye-grabbing engineering masterpiece that bonds classic air-cooled engine design with four valves per cylinder, fuel injection and a great-sounding EXUP exhaust. The superbly balanced chassis completes the picture, with a double cradle tubular steel frame. |
General information |
Model
|

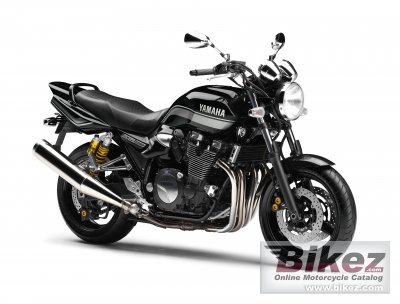

Yamaha XJR 1300 |
Model year
|
2011 |
Category
|
Naked bike |
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
1251.0 ccm (76.34 cubic inches) |
Engine type
|
In-line four, four-stroke |
Power output
|
98.0 HP (71.5 kW)) @ 8000 RPM |
Torque
|
108.4 Nm (11.1 kgf-m or 80.0 ft.lbs) @ 6000 RPM |
Compression
|
9.7:1 |
Bore x stroke
|
79.0 x 63.8 mm (3.1 x 2.5 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. EFI |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
TCI |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiple-disc coil spring |
Driveline
|
Constant Mesh, 5-speed |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel double cradle |
Trail
|
100 mm (3.9 inches) |
Front suspension
|
Telescopic forks |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Swingarm |
Rear wheel travel
|
120 mm (4.7 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
267 mm (10.5 inches) |
Wheels
|
Three-spoke alloy wheels |
Physical measures and capacities |
Dry weight
|
222.0 kg (489.4 pounds) |
Weight incl. oil, gas, etc
|
245.0 kg (540.1 pounds) |
Power/weight ratio
|
0.4414 HP/kg |
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
Overall height
|
1115 mm (43.9 inches) |
Overall length
|
2175 mm (85.6 inches) |
Overall width
|
765 mm (30.1 inches) |
Ground clearance
|
125 mm (4.9 inches) |
Fuel capacity
|
21.00 litres (5.55 US gallons) |
Oil capacity
|
4.20 litres (4.44 US quarts) |
Other specifications |
Starter
|
Electric |
