Yamaha XJR 1300 20062006 Yamaha XJR 1300 specifications, pictures, reviews and rating |

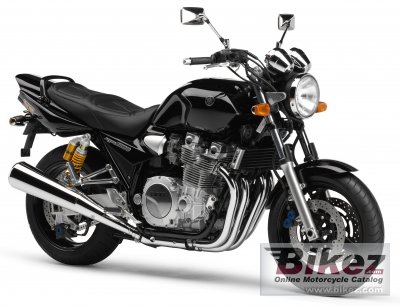

 2006 Yamaha XJR 1300. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| The XJR1300 is no ordinary muscle bike – it’s muscle that can hustle. The XJR’s colossal air-cooled engine proves the old saying that nothing succeeds like excess, with 106Nm of torque at 6500rpm for awesome acceleration, whichever gear you happen to be in. |
| General information | |
|---|---|
| Model name | Yamaha XJR 1300 |
| Model year | 2006 |
| Category | Naked bike |
| Rating | 3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 1251.0 ccm (76.34 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 104.7 HP (76.4 kW)) @ 8000 RPM |
| Torque | 106.2 Nm (10.8 kgf-m or 78.3 ft.lbs) @ 10800 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 79.0 x 63.8 mm (3.1 x 2.5 inches) |
| Fuel system | Carburettor. Mikuni BS37/4 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Dry weight | 224.0 kg (493.8 pounds) |
| Power/weight ratio | 0.4675 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 2175 mm (85.6 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 120 mm (4.7 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Yamaha XJR 1300 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2006 Yamaha XJR 1300 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Reliability for the 2006 Yamaha XJR 1300:  (76.2 out of 100)Click here for complete rating. You can also compare bikes. |
|
