General information |
|
Motorcycle name
|

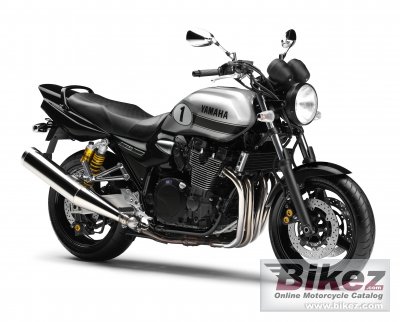

Yamaha XJR1300 |
|
Year model
|
2013 |
|
Type
|
Naked bike |
|
Rating
|
3.9 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1251.0 ccm (76.34 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Engine details
|
Forward-inclined parallel cylinders |
|
Effect
|
98.0 HP (71.5 kW)) @ 8000 RPM |
|
Torque
|
108.4 Nm (11.1 kgf-m or 80.0 ft.lbs) @ 6000 RPM |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
79.0 x 63.8 mm (3.1 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc coil spring |
|
Driveline
|
Constant Mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel double cradle |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
100 mm (3.9 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Hydraulic |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc. Hydraulic |
|
Diameter
|
267 mm (10.5 inches) |
|
Wheels
|
Three-spoke alloy wheels |
|
Physical measures and capacities |
|
Dry weight
|
222.0 kg (489.4 pounds) |
|
Weight incl. oil, gas, etc
|
245.0 kg (540.1 pounds) |
|
Power/weight ratio
|
0.4414 HP/kg |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2175 mm (85.6 inches) |
|
Overall width
|
765 mm (30.1 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Oil capacity
|
4.20 litres (4.44 US quarts) |
|
Other specifications |
|
Color options
|
Midnight black |
|
Starter
|
Electric |
