Yamaha XJ Diversion F ABS 20102010 Yamaha XJ Diversion F ABS specifications, pictures, reviews and rating |

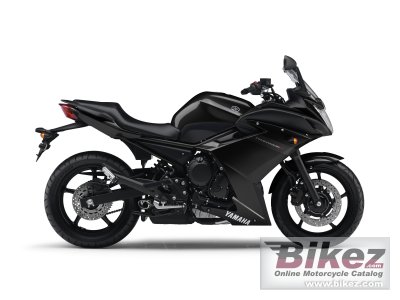

2010 Yamaha XJ Diversion F ABS. Image credits - Yamaha.
| Yamaha's profilation of this bike |
| With its blend of performance, great handling and classic looks, you’ll want to ride the XJ6 Diversion F every day. Its 600cc liquid-cooled 4-cylinder engine has been designed for great torque for exciting acceleration, while the powerful t-disc braking setup ensures secure stopping. |
| General information | |
|---|---|
| Model name | Yamaha XJ Diversion F ABS |
| Year | 2010 |
| Category | Sport |
| Rating | 3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 600.0 ccm (36.61 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power | 76.4 HP (55.8 kW)) @ 10000 RPM |
| Torque | 59.7 Nm (6.1 kgf-m or 44.0 ft.lbs) @ 8500 RPM |
| Compression | 12.2:1 |
| Bore x stroke | 65.5 x 44.5 mm (2.6 x 1.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, diamond shaped |
| Trail | 104 mm (4.1 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm (monocross) |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc. ABS |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 222.0 kg (489.4 pounds) |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall length | 2120 mm (83.5 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Oil capacity | 3.40 litres (3.59 US quarts) |
| Other specifications | |
| Color options | Blue, black |
| Starter | Electric |
