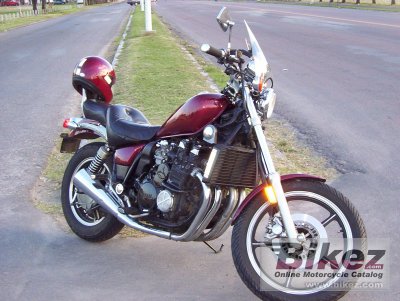

Yamaha XJ 750 Maxim X 19861986 Yamaha XJ 750 Maxim X specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Yamaha XJ 750 Maxim X |
| Year model | 1986 |
| Type | Sport touring |
| Rating | 3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 749.0 ccm (45.70 cubic inches) |
| Type of engine | Four cylinder boxer, four-stroke |
| Effect | 90.0 HP (65.7 kW)) @ 9000 RPM |
| Torque | 72.5 Nm (7.4 kgf-m or 53.5 ft.lbs) @ 8000 RPM |
| Top speed | 186.9 km/h (116.1 mph) |
| 0-100 km/h (0-62 mph) | 3.20 seconds |
| 1/4 mile (0.4 km) | 11.66 seconds |
| Maximum RPM | 8000 |
| Compression | 11.2:1 |
| Bore x stroke | 68.0 x 51.6 mm (2.7 x 2.0 inches) |
| Valves per cylinder | 5 |
| Fuel system | Carburettor. (4) Standard BS33mm Mikuni CV |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multidisc |
| Fuel consumption | 5.70 litres/100 km (17.5 km/l or 41.27 mpg) |
| Greenhouse gases | 132.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double Cradle |
| Rake (fork angle) | 31.5° |
| Trail | 120 mm (4.7 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Swing arm |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 100/90-19 |
| Rear tire | 130/90-16 |
| Front brakes | Double disc. 4 piston caliper |
| Rear brakes | Expanding brake (drum brake). Drum Brake |
| Physical measures and capacities | |
| Dry weight | 215.0 kg (474.0 pounds) |
| Weight incl. oil, gas, etc | 232.0 kg (511.5 pounds) |
| Power/weight ratio | 0.4186 HP/kg |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall height | 1160 mm (45.7 inches) |
| Overall length | 2235 mm (88.0 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1520 mm (59.8 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Oil capacity | 3.50 litres (3.7 US quarts) |
| Other specifications | |
| Starter | Electric |
