General information |
|
Model name
|

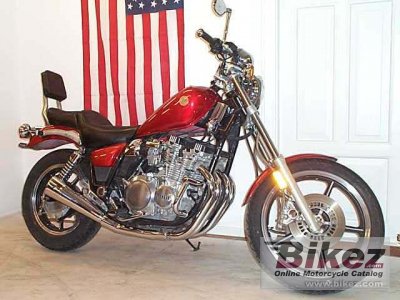

Yamaha XJ 700 S Maxim |
|
Year
|
1985 |
|
Category
|
Naked bike |
|
Rating
|
3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
696.0 ccm (42.47 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
86.0 HP (62.8 kW)) @ 9000 RPM |
|
Torque
|
61.8 Nm (6.3 kgf-m or 45.6 ft.lbs) @ 7500 RPM |
|
Top speed
|
195.0 km/h (121.2 mph) |
|
0-100 km/h (0-62 mph)
|
3.20 seconds |
|
1/4 mile (0.4 km)
|
11.79 seconds |
|
Max RPM
|
10000 |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
65.0 x 52.4 mm (2.6 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. HITACHI Carburetor HSC33x4 Constant Velocity |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
T.C.I. |
|
Lubrication system
|
Pressure lubricated, wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet, multiple disc |
|
Fuel consumption
|
5.70 litres/100 km (17.5 km/l or 41.27 mpg) |
|
Greenhouse gases
|
132.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Double stainless steel pipes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel, double cradle |
|
Rake (fork angle)
|
31.5° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
150 mm (5.9 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
99 mm (3.9 inches) |
|
Front tire
|
100/90-19 57H |
|
Rear tire
|
130/90-16 67H |
|
Front brakes
|
Double disc. Right hand operation |
|
Diameter
|
267 mm (10.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake). Right foot operation |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
224.0 kg (493.8 pounds) |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2000 mm (78.7 inches) |
|
Overall width
|
775 mm (30.5 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1520 mm (59.8 inches) |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Reserve fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Top speed is what I´ve read somewhere; 0-100 km/h en 1/4 mile are the specs of the XJ 700 X and might differ somewhat |
