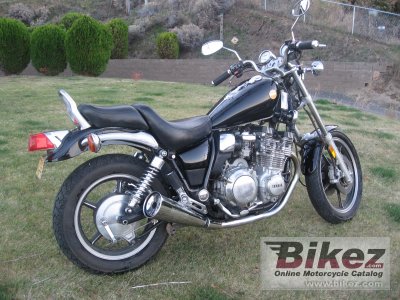

Yamaha XJ 700 N Maxim 19851985 Yamaha XJ 700 N Maxim specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Yamaha XJ 700 N Maxim |
| Model year | 1985 |
| Category | Custom / cruiser |
| Price as new | US$ 2999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 696.0 ccm (42.47 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 86.0 HP (62.8 kW)) @ 9000 RPM |
| Torque | 61.8 Nm (6.3 kgf-m or 45.6 ft.lbs) @ 7500 RPM |
| 1/4 mile (0.4 km) | 12.56 seconds |
| Max RPM | 9500 |
| Compression | 9.8:1 |
| Bore x stroke | 65.0 x 52.4 mm (2.6 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 4, 33mm Hitachi constant-velocity |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Battery-powered, electronic, magnetic triggers |
| Lubrication system | Wet sump, 3.2 qt |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet , multi plate |
| Fuel consumption | 5.02 litres/100 km (19.9 km/l or 46.86 mpg) |
| Greenhouse gases | 116.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | 4 into 2 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle |
| Rake (fork angle) | 31.5° |
| Trail | 120 mm (4.7 inches) |
| Front suspension | 38mm Kayaba telescopic fork |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Dual Kayaba dampers, adjustment for spring preload, swing arm |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 100/90-19 |
| Rear tire | 130/90-16 |
| Front brakes | Double disc. double action calipers |
| Diameter | 270 mm (10.6 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 219.0 kg (482.8 pounds) |
| Weight incl. oil, gas, etc | 228.0 kg (502.7 pounds) |
| Power/weight ratio | 0.3927 HP/kg |
| Seat height | 750 mm (29.5 inches) If adjustable, lowest setting. |
| Overall height | 1160 mm (45.7 inches) |
| Overall length | 2235 mm (88.0 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1520 mm (59.8 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Oil capacity | 3.50 litres (3.7 US quarts) |
| Other specifications | |
| Color options | Red or Black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 85 Yamaha XJ 700 N Maxim discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
